高壓雙聯齒輪泵1DG1BP
產品型號：高壓雙聯齒輪泵1DG1BP
高壓雙聯齒輪泵1DG1BP為常用高壓液壓系統而設定，前蓋法蘭、泵體、后蓋均采用純鋁合性，能適用于多種不同使用條件之液壓系統。
- 產品介紹
- 規格參數
高壓雙聯齒輪泵1DG1BP型號說明

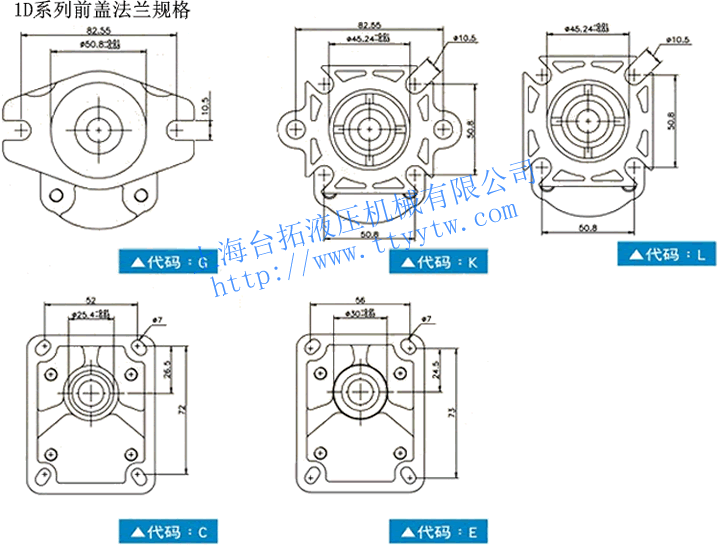

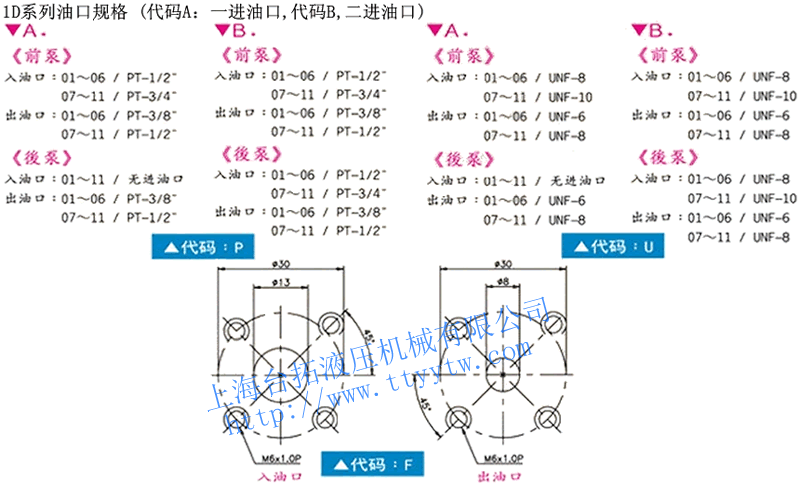

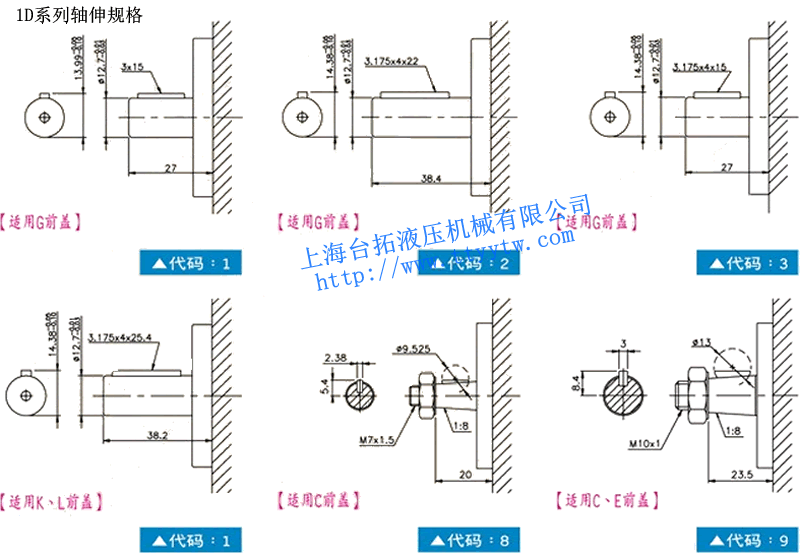

1 D G 1 B P 06 04 R 系列 型式/功能 前蓋法蘭規格 軸伸規格 進油口數 出入油口規格 前泵排量 后泵排量 旋向(R,L) 備注：1、R表示右轉，面向軸伸順時針;L表示左轉，面向軸伸逆時針。2、假設您選前蓋法蘭為G，軸伸代碼為1，二進油口代碼為B，出入油口規格代碼為P，選用排量是6.1&4.1ml/r，旋向是右旋，正確的訂購型號：1DG1BP0604R。

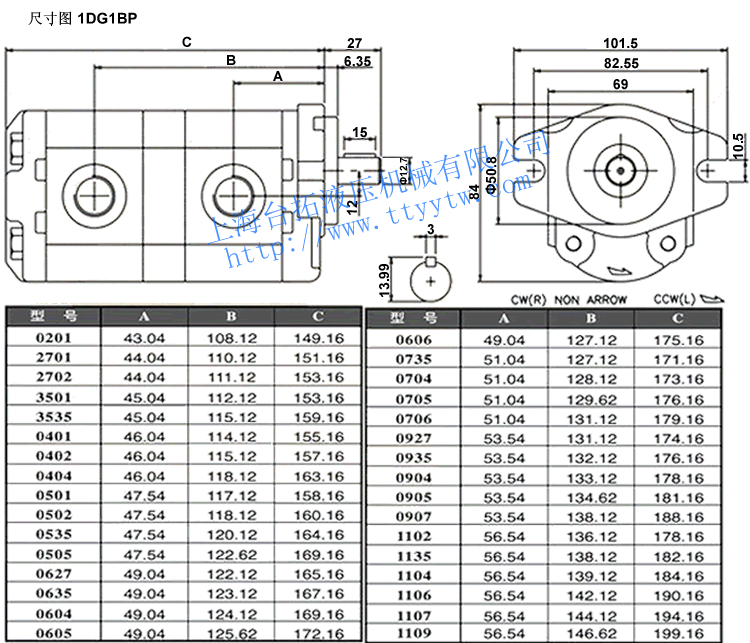

高壓雙聯齒輪泵1DG1BP規格表
型 號 公稱排量(ml/r) 使用壓力
(Mpa)最大轉速
(prm)出油口 一進油口 二進油口 前泵 后泵 前泵 后泵 前泵 后泵 前泵 后泵 1DG1BP0201 2.0 1.3 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP2701 2.7 1.3 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP2702 2.7 2.0 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP3501 3.4 1.3 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP3535 3.4 3.4 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0401 4.1 1.3 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0402 4.1 2.0 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0404 4.1 4.1 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0501 5.1 1.3 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0502 5.1 2.0 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0535 5.1 3.4 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0505 5.1 5.1 21 3500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0627 6.1 2.7 18 2500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0635 6.1 3.5 18 2500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0604 6.1 4.1 18 2500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0605 6.1 5.1 18 2500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0606 6.1 6.1 18 2500 PT3/8" PT3/8" PT1/2" NONE PT1/2" PT1/2" 1DG1BP0735 7.4 3.4 16 2500 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0704 7.4 4.1 16 2500 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0705 7.4 5.1 16 2500 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0706 7.4 6.1 16 2500 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0927 9.1 2.7 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0935 9.1 3.4 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0904 9.1 4.1 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0905 9.1 5.1 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP0907 9.1 7.4 16 2000 PT1/2" PT1/2" PT3/4" NONE PT3/4" PT3/4" 1DG1BP1102 11.0 2.0 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP1135 11.0 3.4 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP1104 11.0 4.1 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP1106 11.0 6.1 16 2000 PT1/2" PT3/8" PT3/4" NONE PT3/4" PT1/2" 1DG1BP1107 11.0 7.4 16 2000 PT1/2" PT1/2" PT3/4" NONE PT3/4" PT3/4" 1DG1BP1109 11.0 9.1 16 2000 PT1/2" PT1/2" PT3/4" NONE PT3/4" PT3/4" 高壓雙聯齒輪泵1DG1BP安裝尺寸圖

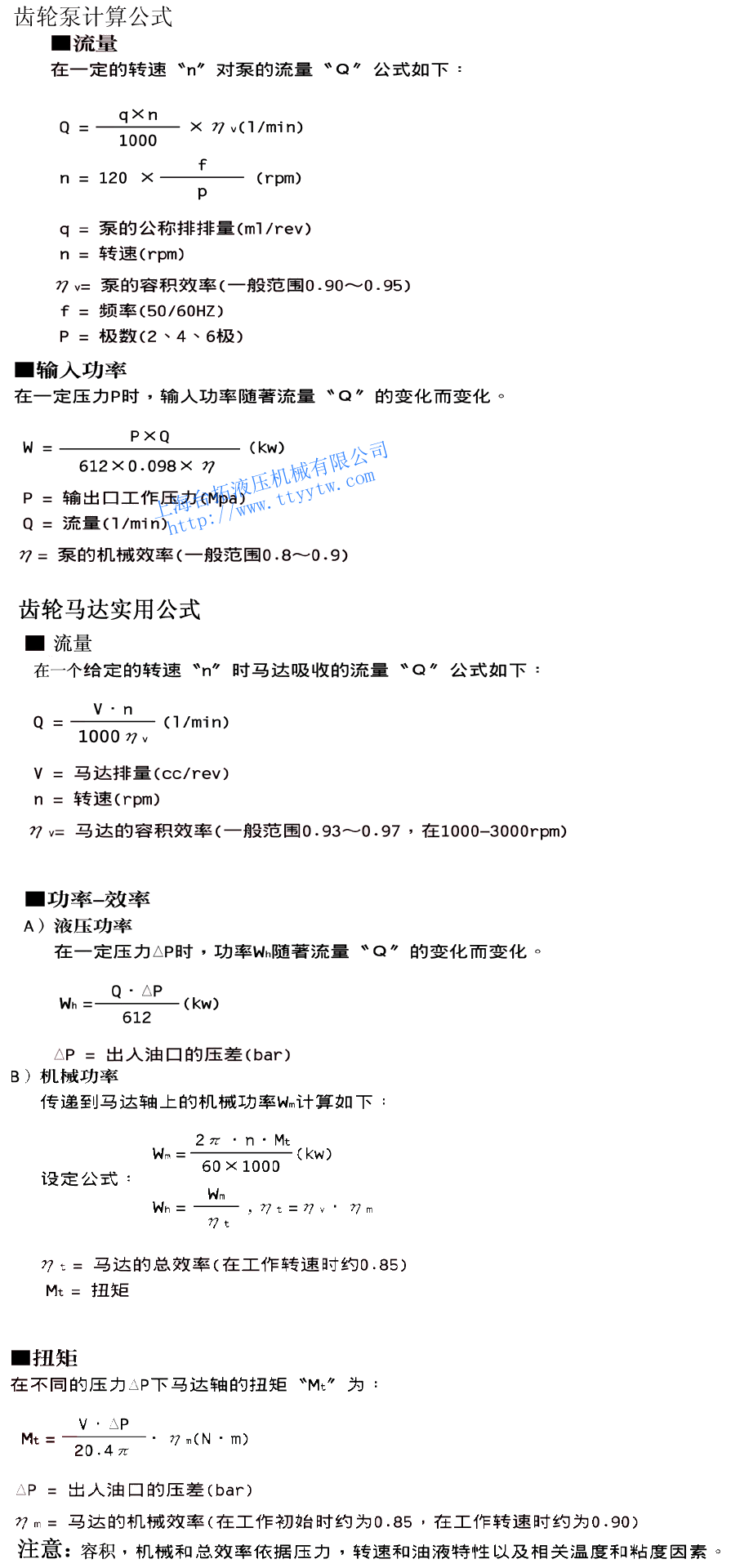

齒輪泵齒輪馬達計算公式
齒輪泵齒輪馬達計算公式
